urbdrc_main.h File Reference

#include <winpr/pool.h>
#include <freerdp/channels/log.h>
#include <freerdp/client/channels.h>

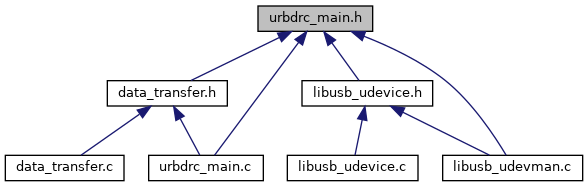

This graph shows which files directly or indirectly include this file:

Data Structures
struct	URBDRC_PLUGIN
struct	FREERDP_URBDRC_SERVICE_ENTRY_POINTS
struct	TRANSFER_DATA
struct	IUDEVICE
struct	IUDEVMAN

Macros
#define	DEVICE_HARDWARE_ID_SIZE   32
#define	DEVICE_COMPATIBILITY_ID_SIZE   36
#define	DEVICE_INSTANCE_STR_SIZE   37
#define	DEVICE_CONTAINER_STR_SIZE   39
#define	TAG   CHANNELS_TAG("urbdrc.client")
#define	DEBUG_DVC(...)
#define	BASIC_DEV_STATE_DEFINED(_arg, _type)
#define	BASIC_DEVMAN_STATE_DEFINED(_arg, _type)
#define	DEVICE_ADD_FLAG_BUS   0x01
#define	DEVICE_ADD_FLAG_DEV   0x02
#define	DEVICE_ADD_FLAG_VENDOR   0x04
#define	DEVICE_ADD_FLAG_PRODUCT   0x08
#define	DEVICE_ADD_FLAG_REGISTER   0x10
#define	DEVICE_ADD_FLAG_ALL

Typedefs
typedef BOOL(*	PREGISTERURBDRCSERVICE) (IWTSPlugin *plugin, IUDEVMAN *udevman)
typedef FREERDP_URBDRC_SERVICE_ENTRY_POINTS *	PFREERDP_URBDRC_SERVICE_ENTRY_POINTS
typedef int(*	PFREERDP_URBDRC_DEVICE_ENTRY) (PFREERDP_URBDRC_SERVICE_ENTRY_POINTS pEntryPoints)
typedef void(*	t_isoch_transfer_cb) (IUDEVICE *idev, GENERIC_CHANNEL_CALLBACK *callback, wStream *out, UINT32 InterfaceId, BOOL noAck, UINT32 MessageId, UINT32 RequestId, UINT32 NumberOfPackets, UINT32 status, UINT32 StartFrame, UINT32 ErrorCount, UINT32 OutputBufferSize)

Functions
FREERDP_API BOOL	add_device (IUDEVMAN *idevman, UINT32 flags, BYTE busnum, BYTE devnum, UINT16 idVendor, UINT16 idProduct)
FREERDP_API BOOL	del_device (IUDEVMAN *idevman, UINT32 flags, BYTE busnum, BYTE devnum, UINT16 idVendor, UINT16 idProduct)
UINT	stream_write_and_free (IWTSPlugin *plugin, IWTSVirtualChannel *channel, wStream *s)

Macro Definition Documentation

BASIC_DEV_STATE_DEFINED

#define BASIC_DEV_STATE_DEFINED	(		_arg,
			_type
	)

Value:

        _type (*get_##_arg)(IUDEVICE * pdev);    \
        void (*set_##_arg)(IUDEVICE * pdev, _type _arg)

BASIC_DEVMAN_STATE_DEFINED

#define BASIC_DEVMAN_STATE_DEFINED	(		_arg,
			_type
	)

Value:

        _type (*get_##_arg)(IUDEVMAN * udevman);    \
        void (*set_##_arg)(IUDEVMAN * udevman, _type _arg)

DEBUG_DVC

#define DEBUG_DVC

(

...

)

Value:

        do                 \
        {                  \
        } while (0)

DEVICE_ADD_FLAG_ALL

#define DEVICE_ADD_FLAG_ALL

Value:

        (DEVICE_ADD_FLAG_BUS | DEVICE_ADD_FLAG_DEV | DEVICE_ADD_FLAG_VENDOR | \
         DEVICE_ADD_FLAG_PRODUCT | DEVICE_ADD_FLAG_REGISTER)

DEVICE_ADD_FLAG_BUS

#define DEVICE_ADD_FLAG_BUS   0x01

DEVICE_ADD_FLAG_DEV

#define DEVICE_ADD_FLAG_DEV   0x02

DEVICE_ADD_FLAG_PRODUCT

#define DEVICE_ADD_FLAG_PRODUCT   0x08

DEVICE_ADD_FLAG_REGISTER

#define DEVICE_ADD_FLAG_REGISTER   0x10

DEVICE_ADD_FLAG_VENDOR

#define DEVICE_ADD_FLAG_VENDOR   0x04

DEVICE_COMPATIBILITY_ID_SIZE

#define DEVICE_COMPATIBILITY_ID_SIZE   36

DEVICE_CONTAINER_STR_SIZE

#define DEVICE_CONTAINER_STR_SIZE   39

DEVICE_HARDWARE_ID_SIZE

#define DEVICE_HARDWARE_ID_SIZE   32

FreeRDP: A Remote Desktop Protocol Implementation RemoteFX USB Redirection

Copyright 2012 Atrust corp. Copyright 2012 Alfred Liu alfre.nosp@m.d.li.nosp@m.u@atr.nosp@m.usco.nosp@m.rp.co.nosp@m.m

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

DEVICE_INSTANCE_STR_SIZE

#define DEVICE_INSTANCE_STR_SIZE   37

TAG

#define TAG   CHANNELS_TAG("urbdrc.client")

Typedef Documentation

PFREERDP_URBDRC_DEVICE_ENTRY

typedef int(* PFREERDP_URBDRC_DEVICE_ENTRY) (PFREERDP_URBDRC_SERVICE_ENTRY_POINTS pEntryPoints)

PFREERDP_URBDRC_SERVICE_ENTRY_POINTS

typedef FREERDP_URBDRC_SERVICE_ENTRY_POINTS* PFREERDP_URBDRC_SERVICE_ENTRY_POINTS

PREGISTERURBDRCSERVICE

typedef BOOL(* PREGISTERURBDRCSERVICE) (IWTSPlugin *plugin, IUDEVMAN *udevman)

t_isoch_transfer_cb

typedef void(* t_isoch_transfer_cb) (IUDEVICE *idev, GENERIC_CHANNEL_CALLBACK *callback, wStream *out, UINT32 InterfaceId, BOOL noAck, UINT32 MessageId, UINT32 RequestId, UINT32 NumberOfPackets, UINT32 status, UINT32 StartFrame, UINT32 ErrorCount, UINT32 OutputBufferSize)

Function Documentation

add_device()

FREERDP_API BOOL add_device	(	IUDEVMAN *	idevman,
		UINT32	flags,
		BYTE	busnum,
		BYTE	devnum,
		UINT16	idVendor,
		UINT16	idProduct
	)

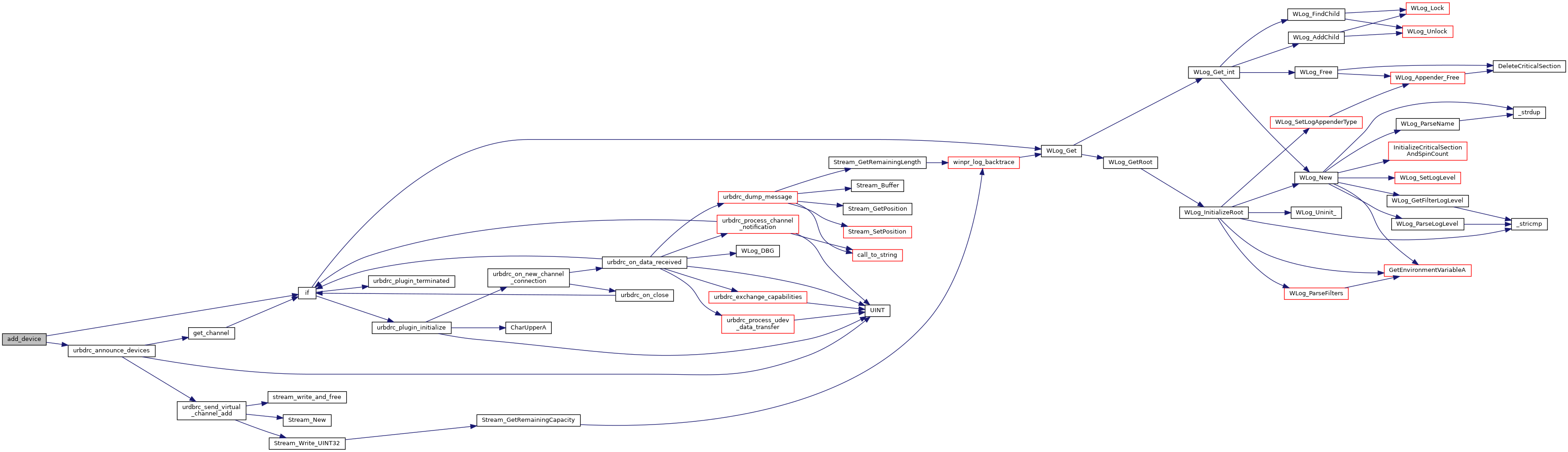

Here is the call graph for this function:

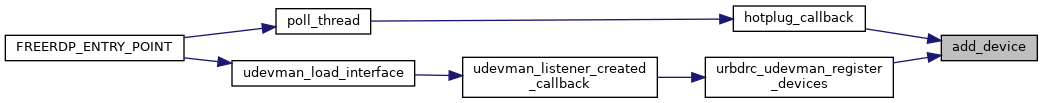

Here is the caller graph for this function:

del_device()

FREERDP_API BOOL del_device	(	IUDEVMAN *	idevman,
		UINT32	flags,
		BYTE	busnum,
		BYTE	devnum,
		UINT16	idVendor,
		UINT16	idProduct
	)

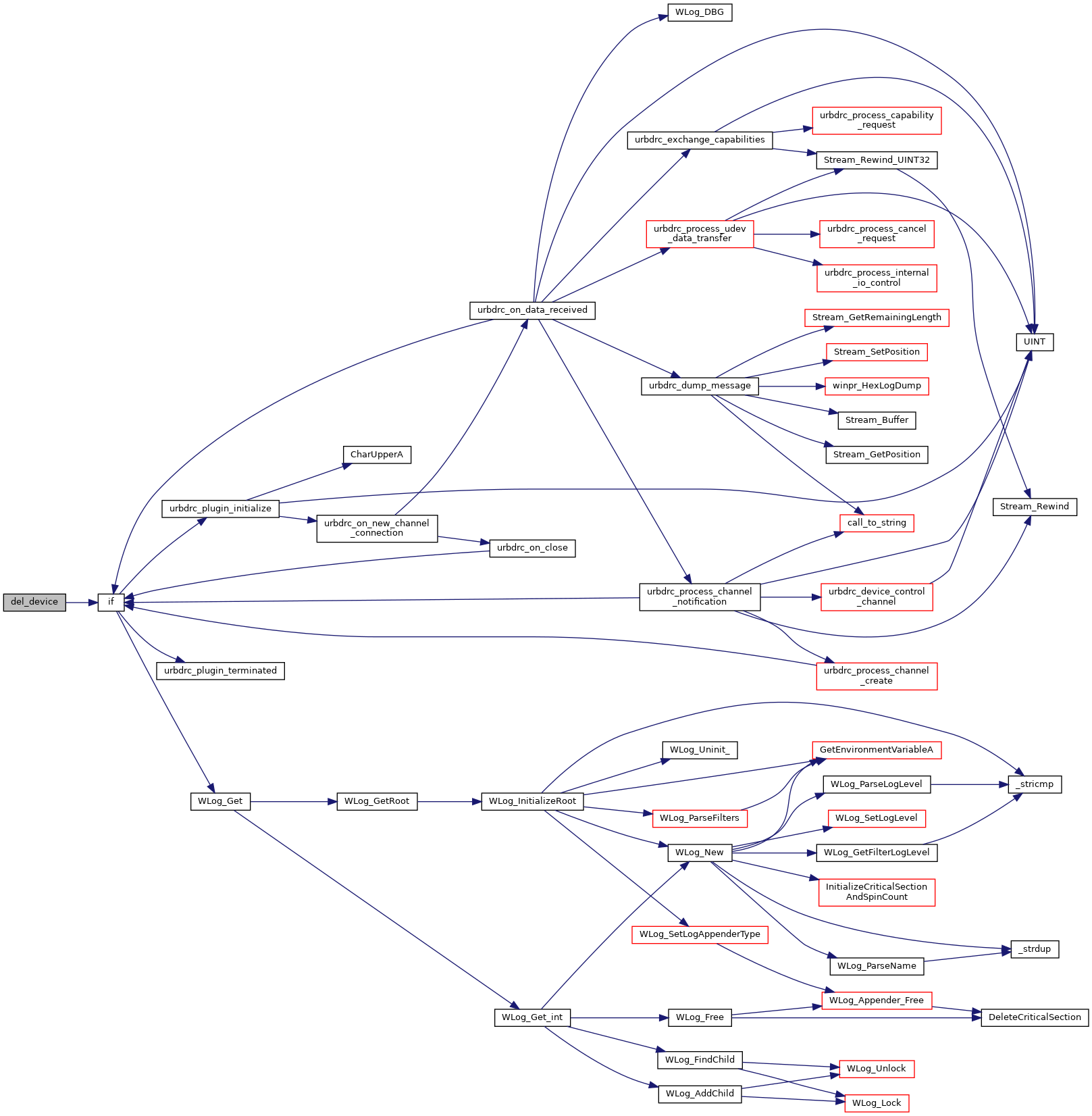

Here is the call graph for this function:

Here is the caller graph for this function:

stream_write_and_free()

UINT stream_write_and_free	(	IWTSPlugin *	plugin,
		IWTSVirtualChannel *	channel,
		wStream *	s
	)

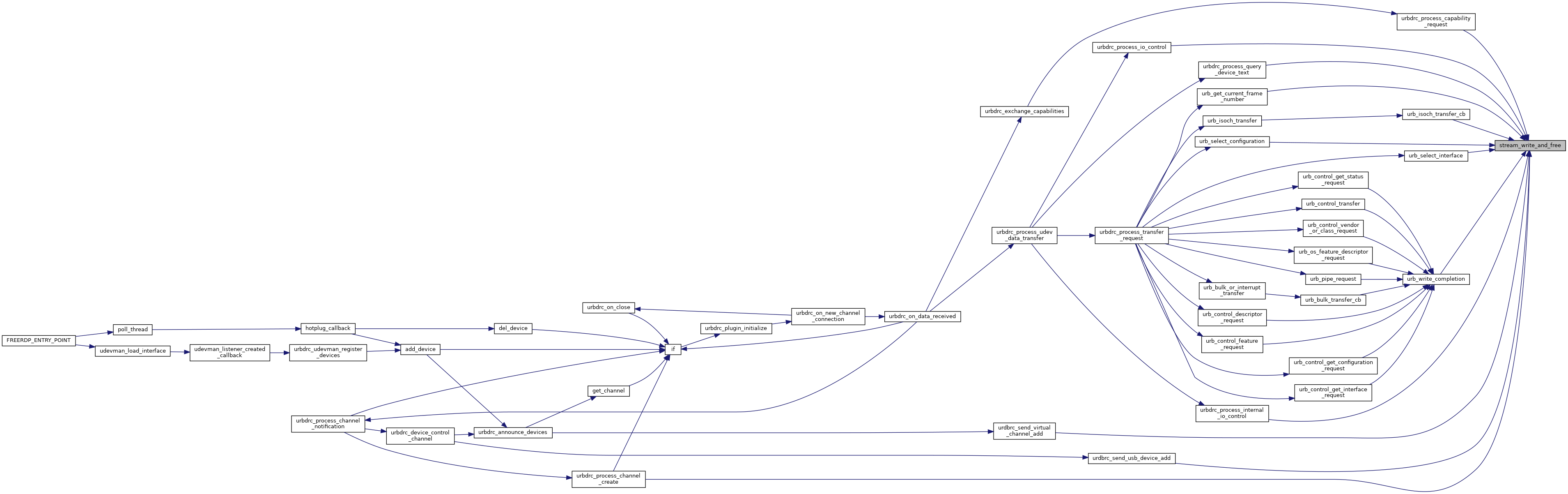

Here is the caller graph for this function:
