FreeRDP
codec/region.h File Reference
#include <freerdp/api.h>
#include <freerdp/types.h>

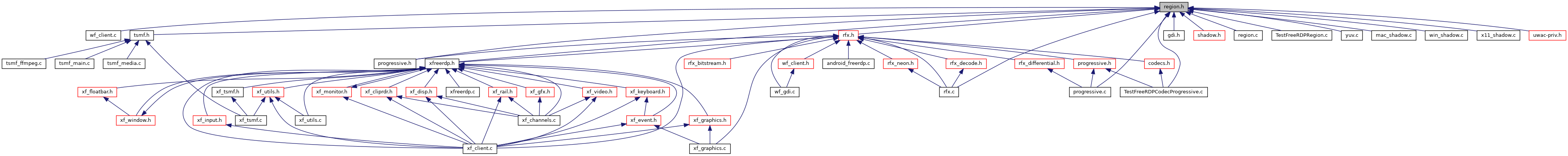

This graph shows which files directly or indirectly include this file:

Data Structures

struct  REGION16


Functions

FREERDP_API BOOL rectangles_equal (const RECTANGLE_16 *r1, const RECTANGLE_16 *r2)

FREERDP_API BOOL rectangles_intersects (const RECTANGLE_16 *r1, const RECTANGLE_16 *r2)

FREERDP_API BOOL rectangles_intersection (const RECTANGLE_16 *r1, const RECTANGLE_16 *r2, RECTANGLE_16 *dst)

FREERDP_API void region16_init (REGION16 *region)

FREERDP_API int region16_n_rects (const REGION16 *region)

FREERDP_API const RECTANGLE_16region16_rects (const REGION16 *region, UINT32 *nbRects)

FREERDP_API const RECTANGLE_16region16_extents (const REGION16 *region)

FREERDP_API BOOL rectangle_is_empty (const RECTANGLE_16 *rect)

FREERDP_API BOOL region16_is_empty (const REGION16 *region)

FREERDP_API void region16_clear (REGION16 *region)

FREERDP_API void region16_print (const REGION16 *region)

FREERDP_API BOOL region16_copy (REGION16 *dst, const REGION16 *src)

FREERDP_API BOOL region16_union_rect (REGION16 *dst, const REGION16 *src, const RECTANGLE_16 *rect)

FREERDP_API BOOL region16_intersects_rect (const REGION16 *src, const RECTANGLE_16 *arg2)

FREERDP_API BOOL region16_intersect_rect (REGION16 *dst, const REGION16 *src, const RECTANGLE_16 *arg2)

FREERDP_API void region16_uninit (REGION16 *region)


Function Documentation

◆ rectangle_is_empty()

FREERDP_API BOOL rectangle_is_empty ( const RECTANGLE_16 rect)

returns if the rectangle is empty

Parameters
rectthe rectangle to check
Returns
if the rectangle is empty

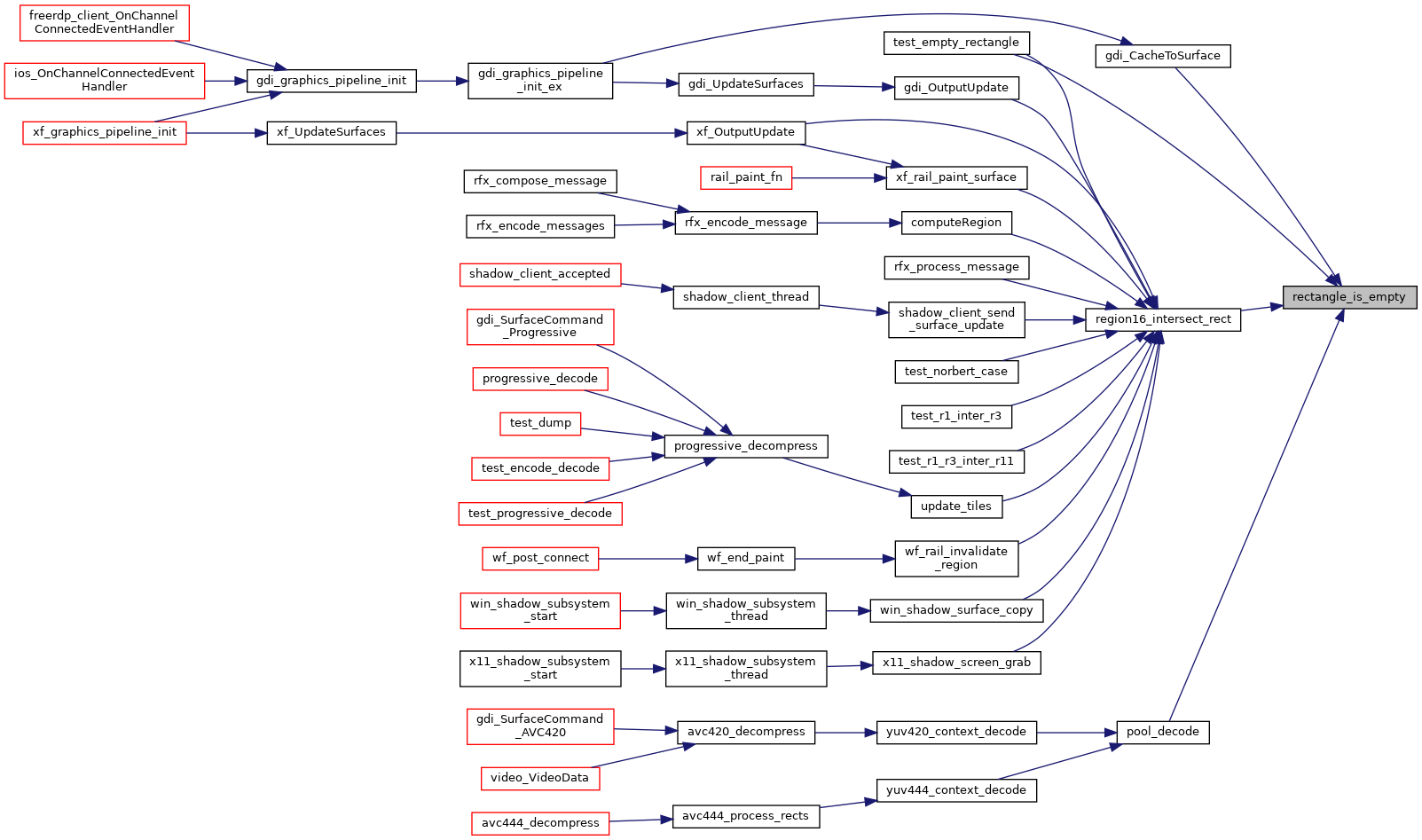

Here is the caller graph for this function:

◆ rectangles_equal()

FREERDP_API BOOL rectangles_equal ( const RECTANGLE_16 r1,
const RECTANGLE_16 r2
)

computes if two rectangles are equal

Parameters
r1first rectangle
r2second rectangle
Returns
if the two rectangles are equal

◆ rectangles_intersection()

FREERDP_API BOOL rectangles_intersection ( const RECTANGLE_16 r1,
const RECTANGLE_16 r2,
RECTANGLE_16 dst
)

computes the intersection of two rectangles

Parameters
r1first rectangle
r2second rectangle
dstresulting intersection
Returns
if the two rectangles intersect

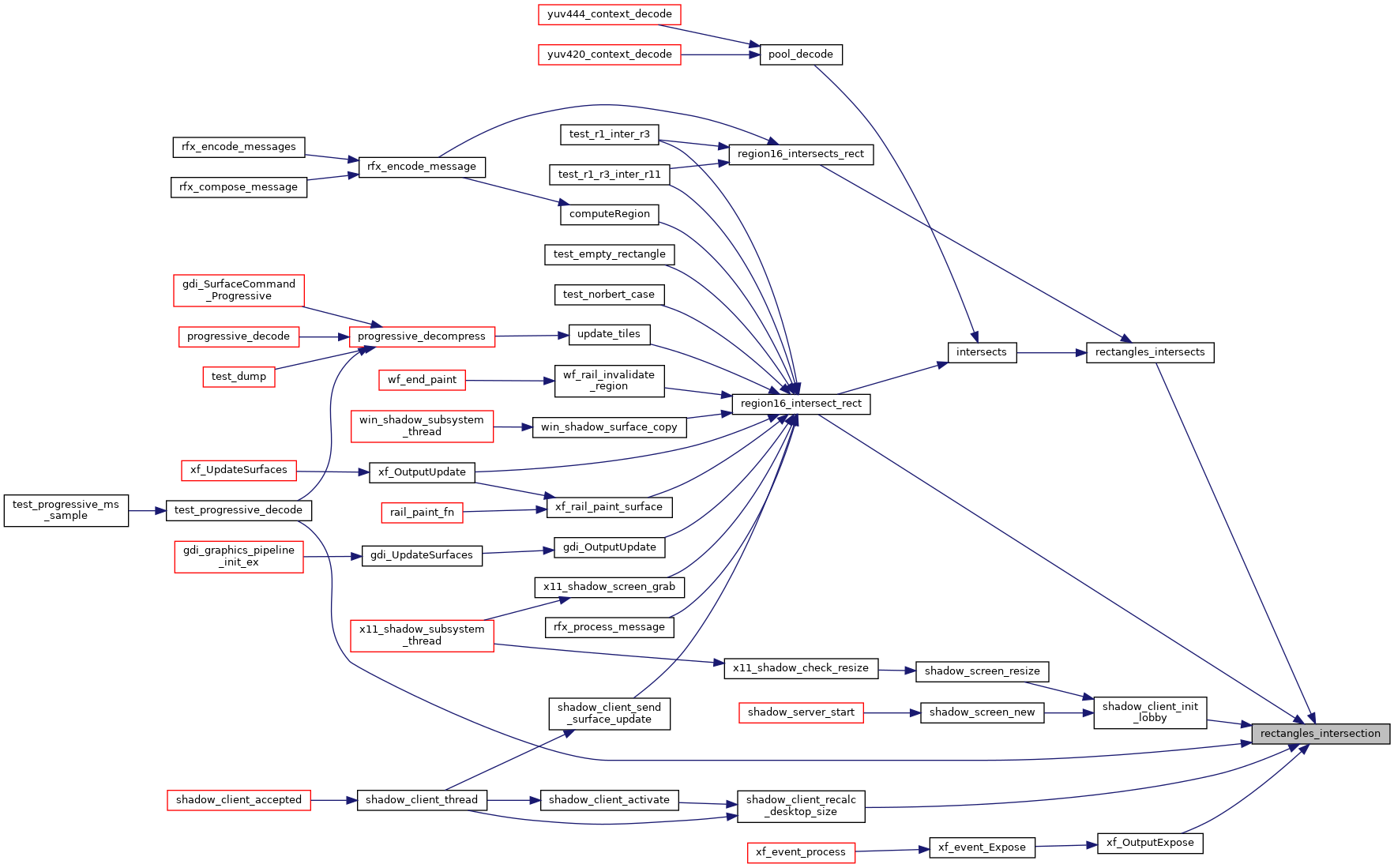

Here is the caller graph for this function:

◆ rectangles_intersects()

FREERDP_API BOOL rectangles_intersects ( const RECTANGLE_16 r1,
const RECTANGLE_16 r2
)

computes if two rectangles intersect

Parameters
r1first rectangle
r2second rectangle
Returns
if the two rectangles intersect
Here is the call graph for this function:

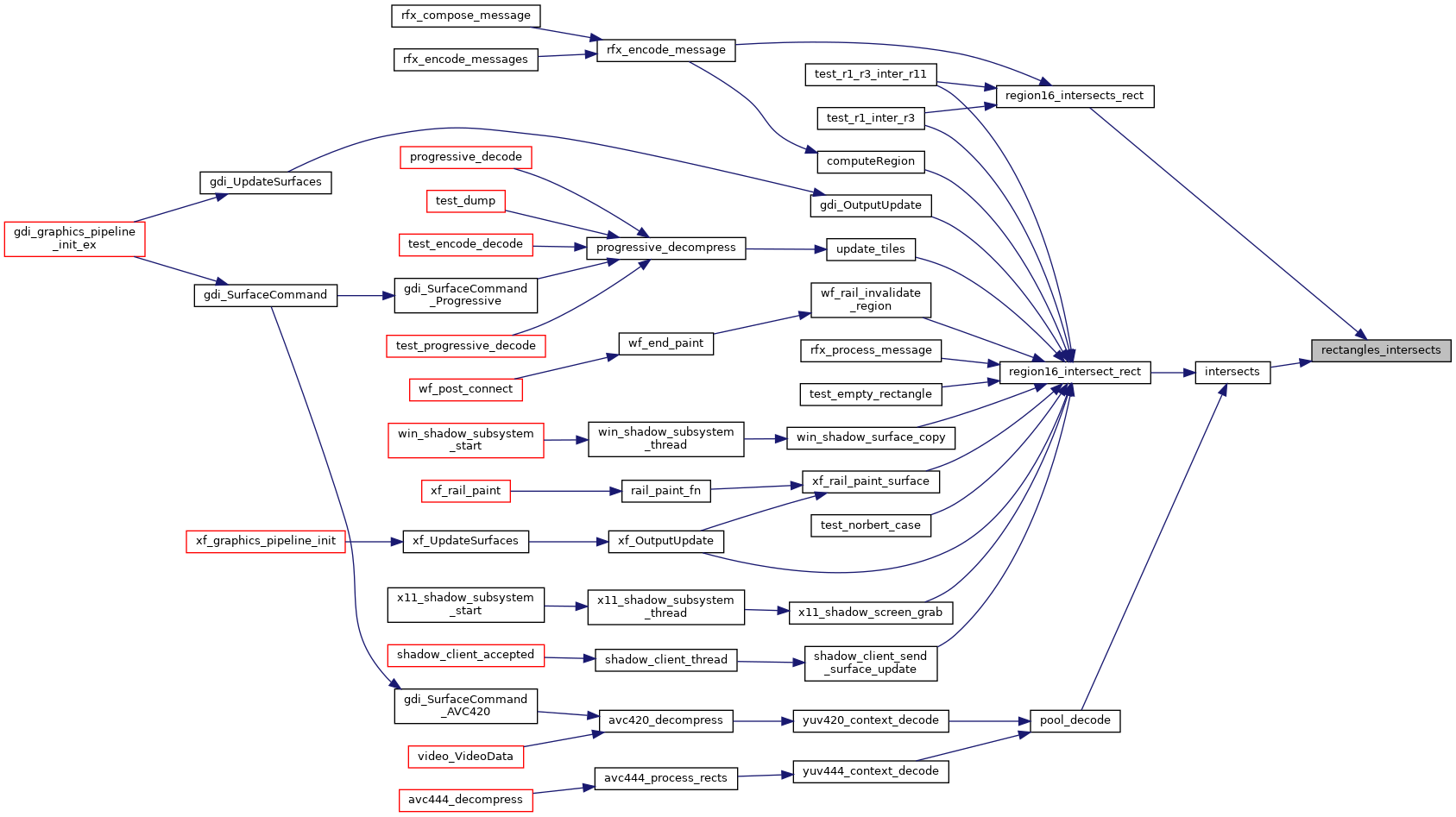

Here is the caller graph for this function:

◆ region16_clear()

FREERDP_API void region16_clear ( REGION16 region)

clears the region, the region is reset to a (0,0,0,0) region

Parameters
regionthe region to clear
Here is the call graph for this function:

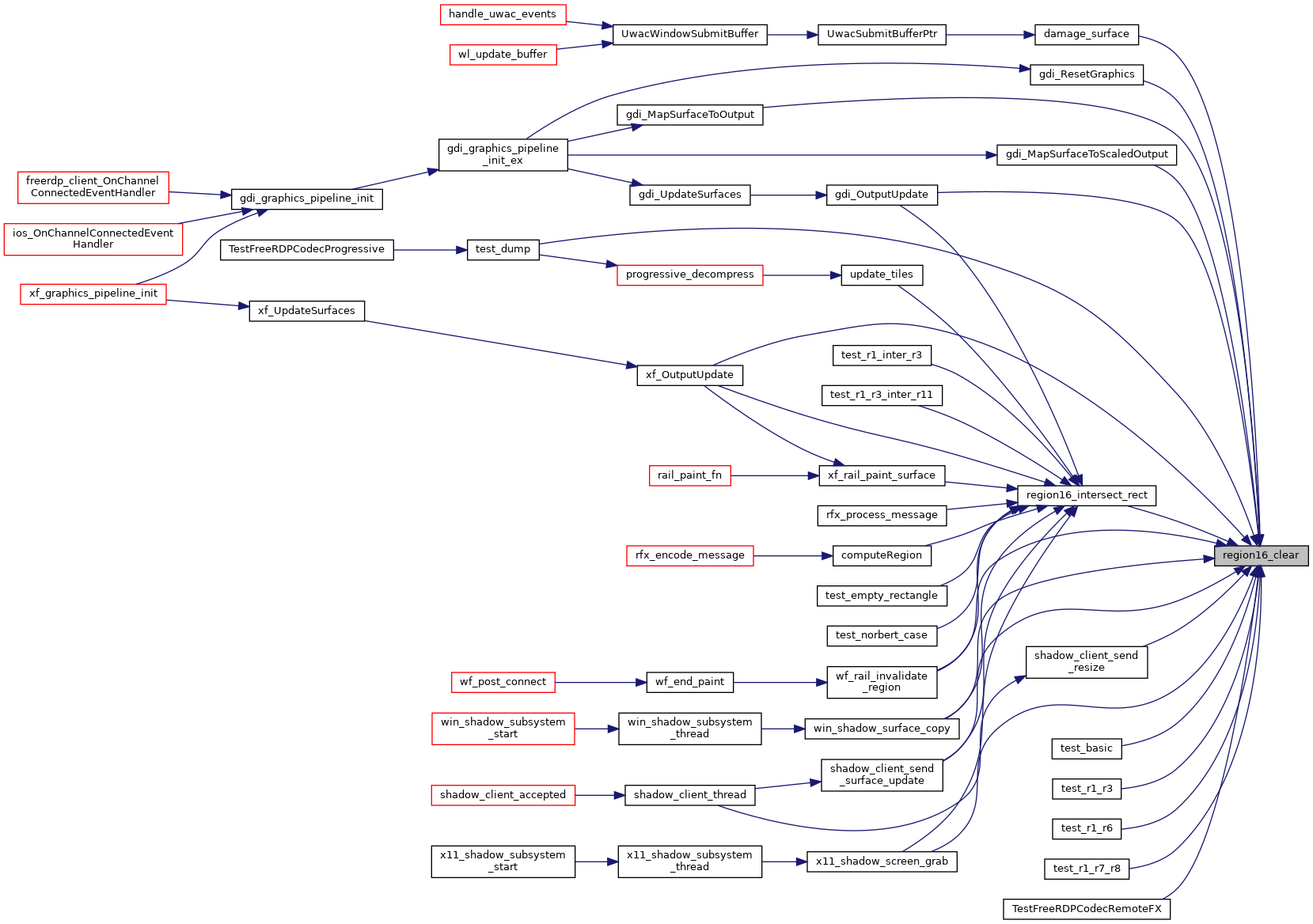

Here is the caller graph for this function:

◆ region16_copy()

FREERDP_API BOOL region16_copy ( REGION16 dst,
const REGION16 src
)

copies the region to another region

Parameters
dstdestination region
srcsource region
Returns
if the operation was successful (false meaning out-of-memory)
Here is the call graph for this function:
Here is the caller graph for this function:

◆ region16_extents()

FREERDP_API const RECTANGLE_16* region16_extents ( const REGION16 region)
Returns
the extents rectangle of this region
Here is the caller graph for this function:

◆ region16_init()

FREERDP_API void region16_init ( REGION16 region)

initialize a region16

Parameters
regionthe region to initialise

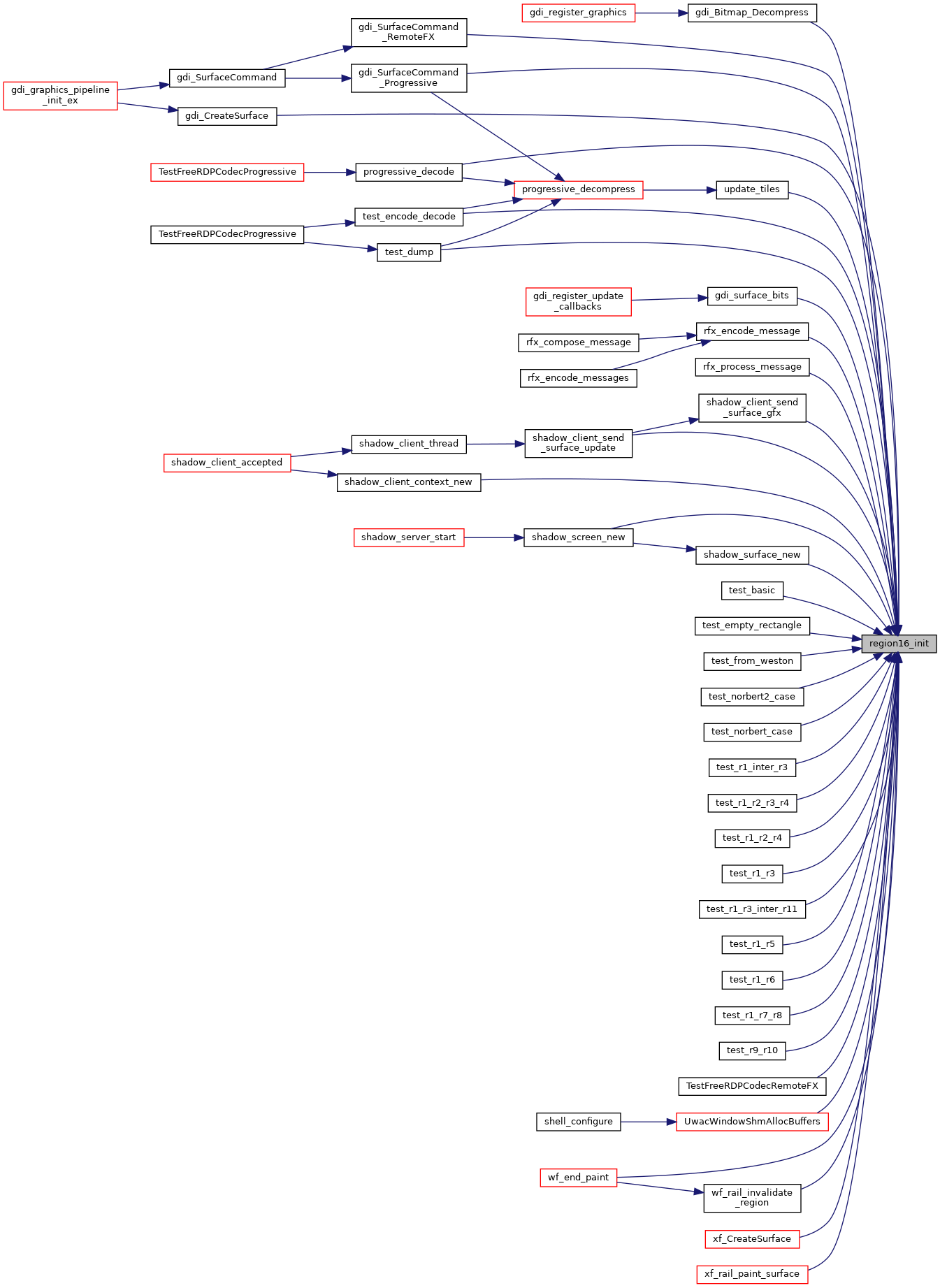

Here is the caller graph for this function:

◆ region16_intersect_rect()

FREERDP_API BOOL region16_intersect_rect ( REGION16 dst,
const REGION16 src,
const RECTANGLE_16 arg2
)

computes the intersection between a region and a rectangle

Parameters
dstdestination region
srcthe source region
arg2the rectangle that intersects
Returns
if the operation was successful (false meaning out-of-memory)

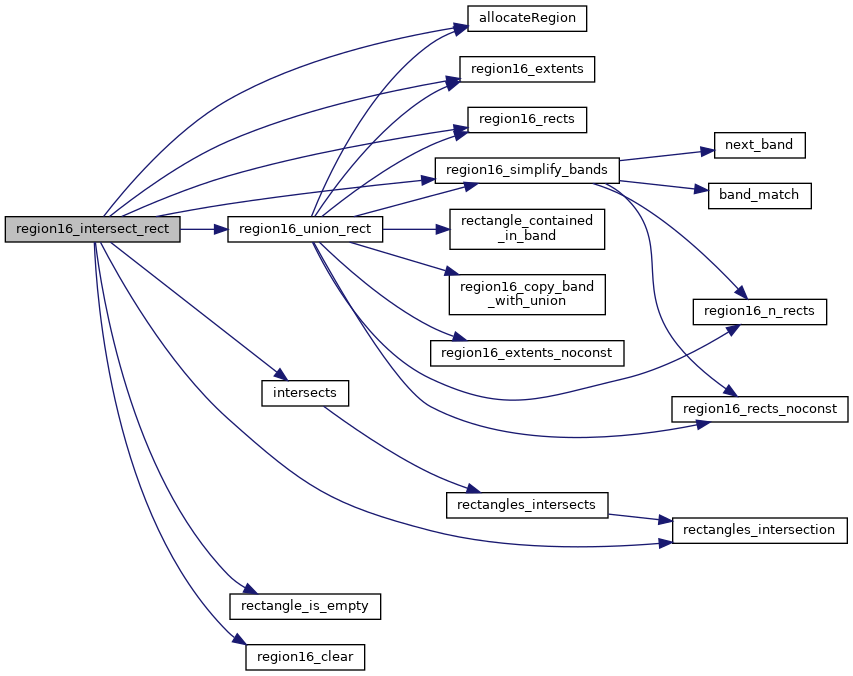

Here is the call graph for this function:

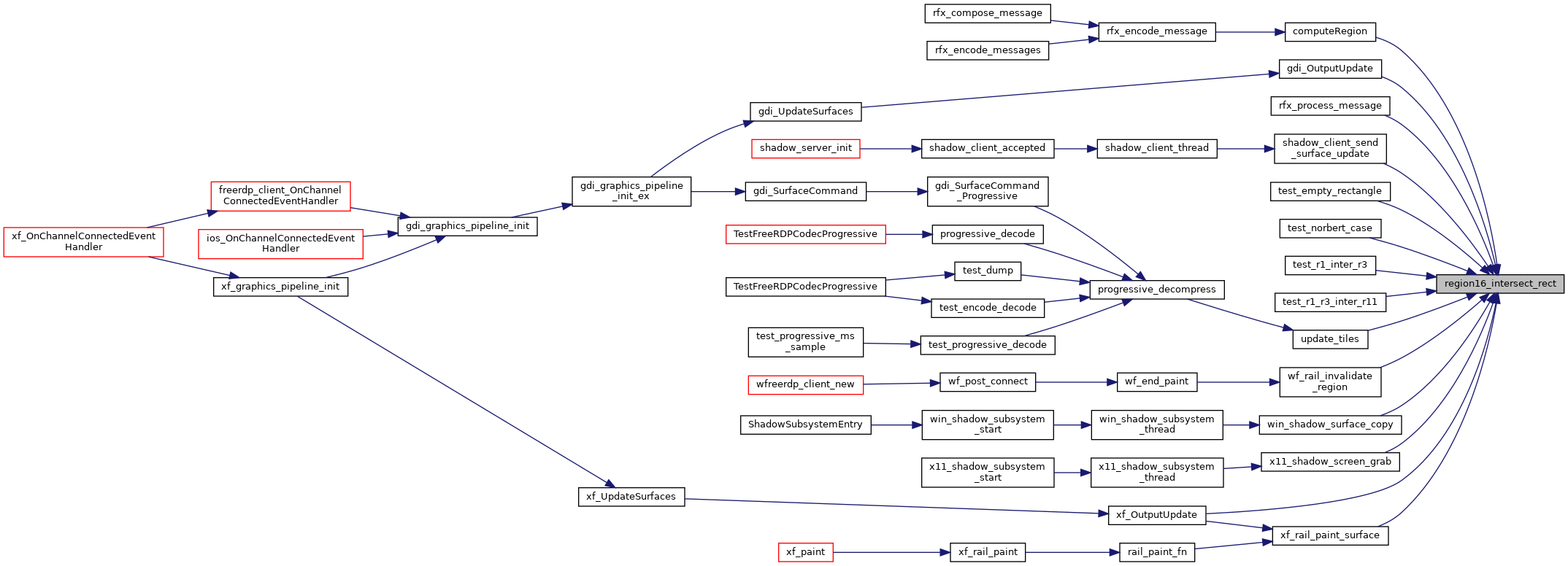

Here is the caller graph for this function:

◆ region16_intersects_rect()

FREERDP_API BOOL region16_intersects_rect ( const REGION16 src,
const RECTANGLE_16 arg2
)

returns if a rectangle intersects the region

Parameters
srcthe region
arg2the rectangle
Returns
if region and rectangle intersect
Here is the call graph for this function:

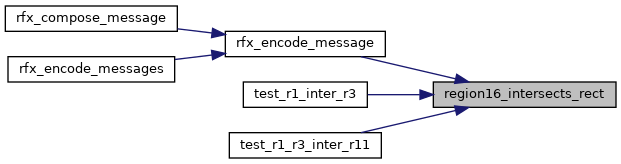

Here is the caller graph for this function:

◆ region16_is_empty()

FREERDP_API BOOL region16_is_empty ( const REGION16 region)

returns if the region is empty

Parameters
regionthe region to check
Returns
if the region is empty

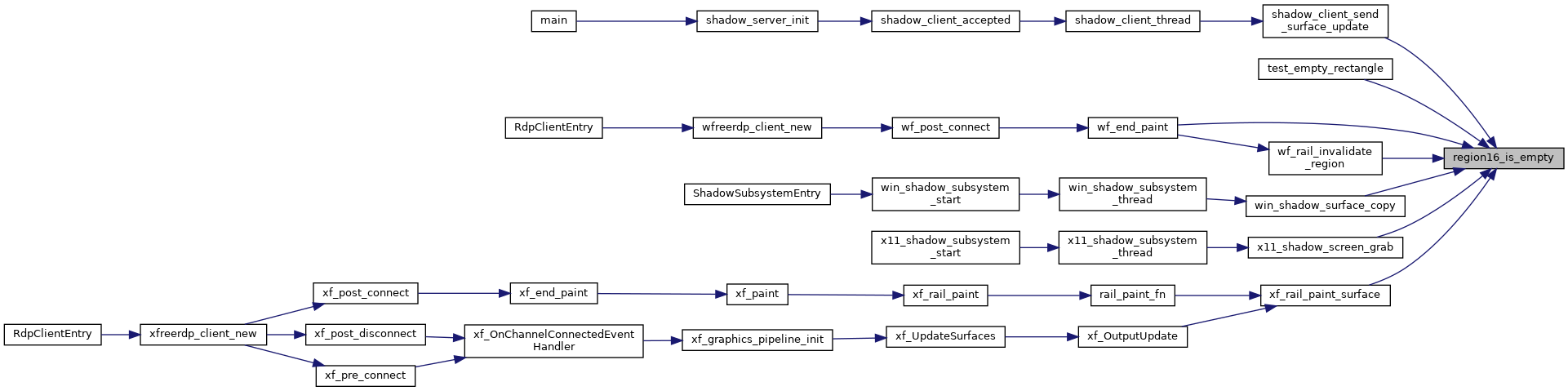

Here is the caller graph for this function:

◆ region16_n_rects()

FREERDP_API int region16_n_rects ( const REGION16 region)
Returns
the number of rectangles of this region16

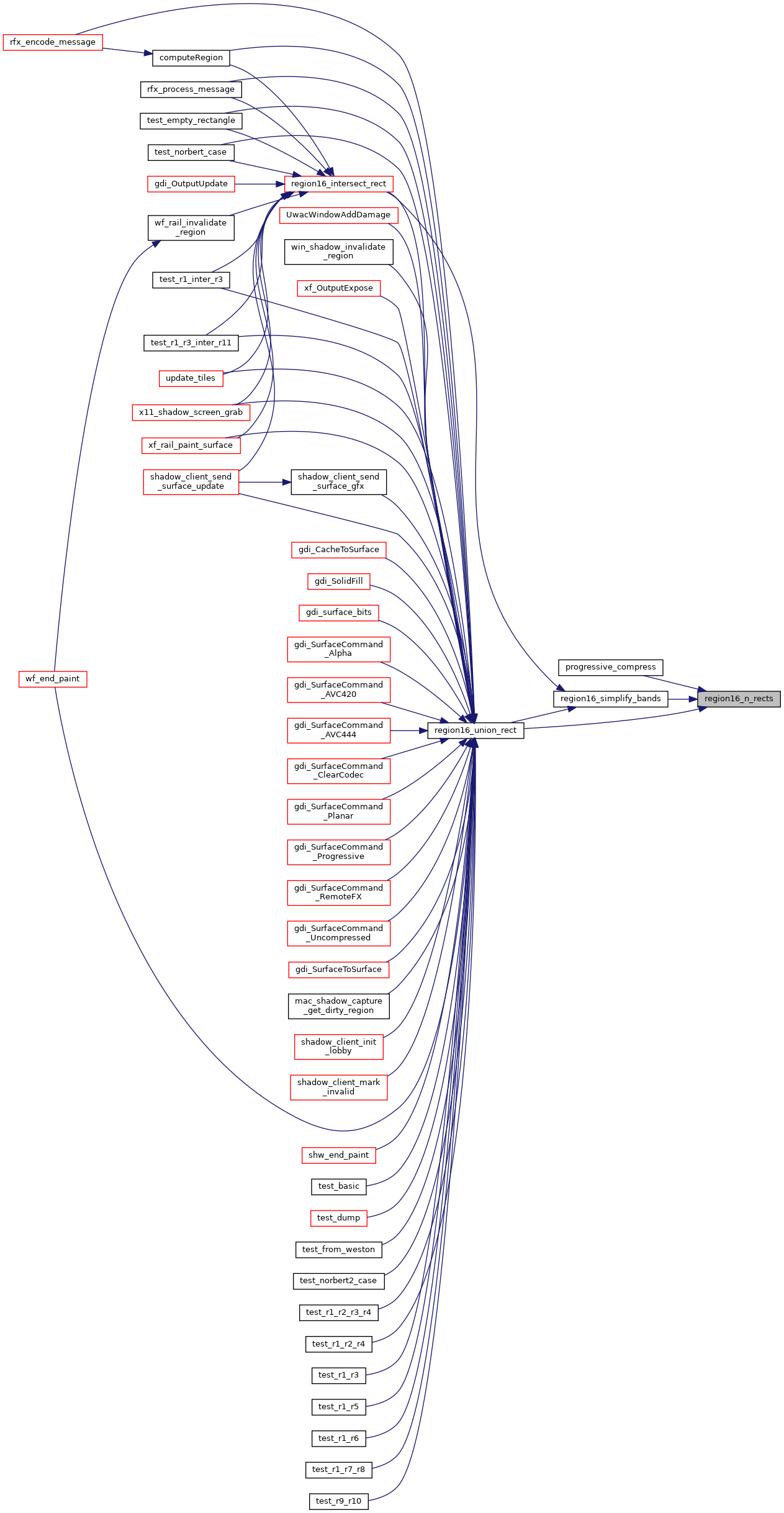

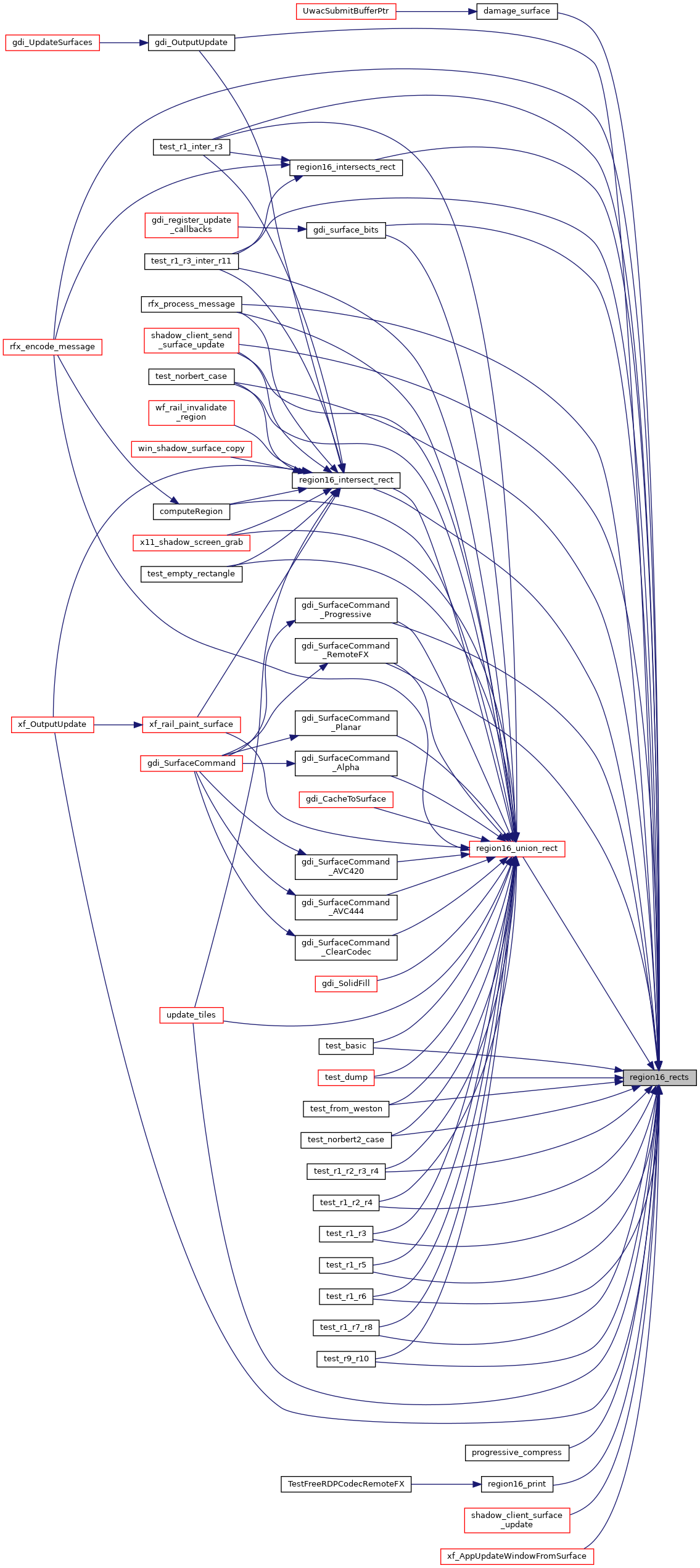

Here is the caller graph for this function:

◆ region16_print()

FREERDP_API void region16_print ( const REGION16 region)

dumps the region on stderr

Parameters
regionthe region to dump
Here is the call graph for this function:
Here is the caller graph for this function:

◆ region16_rects()

FREERDP_API const RECTANGLE_16* region16_rects ( const REGION16 region,
UINT32 *  nbRects
)

returns a pointer to rectangles and the number of rectangles in this region. nbRects can be set to NULL if not interested in the number of rectangles.

Parameters
regionthe input region
nbRectsif non-NULL returns the number of rectangles
Returns
a pointer on the rectangles
Here is the caller graph for this function:

◆ region16_uninit()

FREERDP_API void region16_uninit ( REGION16 region)

release internal data associated with this region

Parameters
regionthe region to release
Here is the call graph for this function:
Here is the caller graph for this function:

◆ region16_union_rect()

FREERDP_API BOOL region16_union_rect ( REGION16 dst,
const REGION16 src,
const RECTANGLE_16 rect
)

adds a rectangle in src and stores the resulting region in dst

Parameters
dstdestination region
srcsource region
rectthe rectangle to add
Returns
if the operation was successful (false meaning out-of-memory)
Here is the call graph for this function:

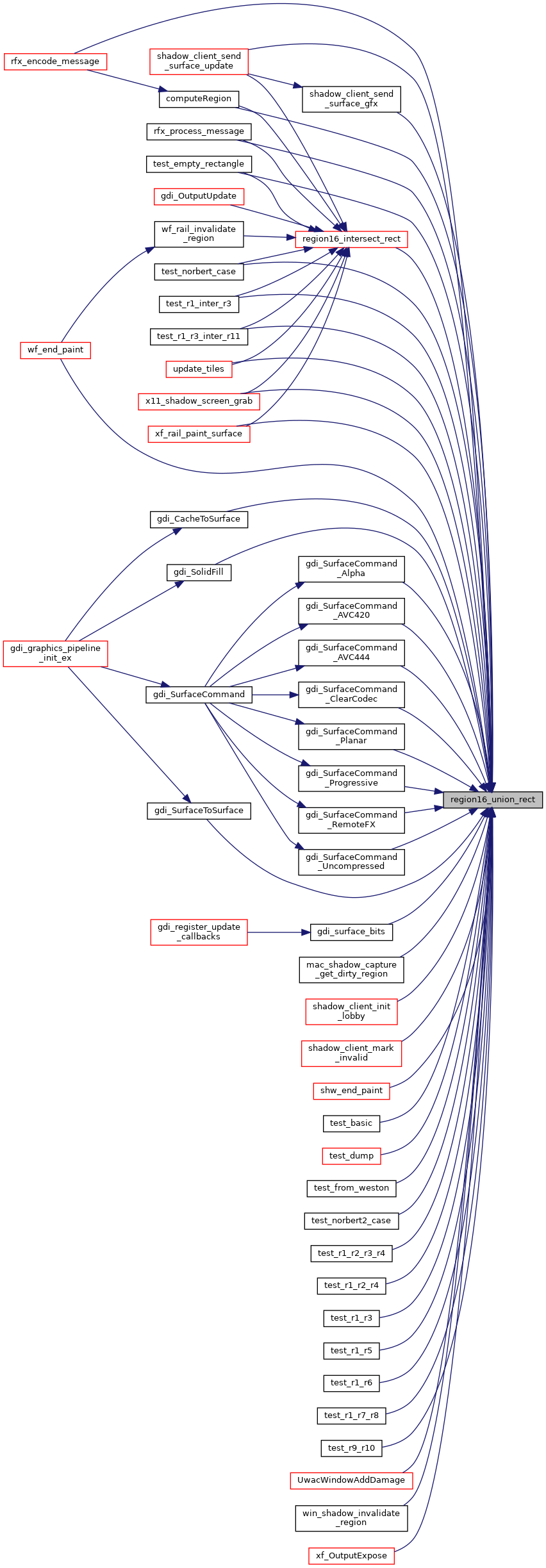

Here is the caller graph for this function:
